Introduction

Argo CD stands as a notably lightweight and streamlined solution for managing Kubernetes deployments with ease and efficiency.

This tool is seamlessly integrated into Kubernetes as a Custom Resource Definition (CRD) accompanied by a set of controllers. One key controller persistently observes the Kubernetes manifest files, ensuring their alignment with the desired state as defined in a specific Git repository. When the live state of deployed resources does not match this desired state, Argo CD identifies them as “out of sync.” It then provides detailed reports and visualizations of these discrepancies, along with options for automatic or manual reconciliation to align the states. The true essence of Argo CD is found in its ability to accurately mirror your code repository, thereby simplifying the management of incidents and offering a transparent and straightforward view of your entire deployment process.

Install ArgoCD

For more in depth overview, you can see the official documentation around architectureand Official Getting started Guide

Requirements

Installed kubectl command-line tool.
Have a kubeconfig file (default location is ~/.kube/config).
CoreDNS in the Kubernetes cluster (your k3s cluster has this already)

Install using helm

Argo CD Installation into Kubernetes can be done using Helm or Manifest. I followed this guide to install it using Helm:

Install Argo CD using helm

helm repo add argo https://argoproj.github.io/argo-helm
helm repo update

helm install argo-cd argo/argo-cd \
	--version 5.35.0 \
	--namespace argocd \
	--create-namespace

After running the helm install you will see an output similar to the following:

In order to access the server UI you have the following options:

1. kubectl port-forward service/argo-cd-argocd-server -n argocd 8080:443

    and then open the browser on http://localhost:8080 and accept the certificate

2. enable ingress in the values file `server.ingress.enabled` and either
      - Add the annotation for ssl passthrough: https://argo-cd.readthedocs.io/en/stable/operator-manual/ingress/#option-1-ssl-passthrough
      - Set the `configs.params."server.insecure"` in the values file and terminate SSL at your ingress: https://argo-cd.readthedocs.io/en/stable/operator-manual/ingress/#option-2-multiple-ingress-objects-and-hosts

After reaching the UI the first time you can login with username: admin and the random password generated during the installation. You can find the password by running:

kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

(You should delete the initial secret afterwards as suggested by the Getting Started Guide: https://argo-cd.readthedocs.io/en/stable/getting_started/#4-login-using-the-cli)

Self-signed or Valid certs

By default, this installation comes with a self-signed certificate, and in the homelab context, you can safely ignore any insecure TLS errors. You can choose one of the following options for handling this:

Follow the instructions to configure a certificate and ensure your client OS trusts it.
Configure your client OS to trust the self-signed certificate (e.g. MacOS)
Use the --insecure flag for all Argo CD CLI operations.

Argo CD CLI

The Argo CD CLI provides almost the same features as the Web GUI. The CLI provides some flexibility on how to manage ArgoCS. and you can perform most operations via the UI using CLI.

Detailed installation instructions can be found via the CLI installation documentation.

Install Argo CD CLI on your client machine.

For example on Linux:

curl -sSL -o argocd-linux-amd64 https://github.com/argoproj/argo-cd/releases/latest/download/argocd-linux-amd64

sudo install -m 555 argocd-linux-amd64 /usr/local/bin/argocd

rm argocd-linux-amd64

Homebrew

brew install argocd

Check installation with the check version command

argocd version

Access Argo CD API Server:

Like any Kubernetes Service are several ways to expose Argo Server.

Port Forwarding

Kubectl port-forwarding can also be used to connect to the API server without exposing the service:

kubectl port-forward service/argo-cd-argocd-server -n argocd 8080:443

LoadBalancer

Since I have LoadBalancer already available I can access my Management UI on that service

Change the argocd-server service type to `LoadBalancer

kubectl patch svc argo-cd-argocd-server -n argocd -p '{"spec": {"type": "LoadBalancer"}}'

# Get IP
k get service/argo-cd-argocd-server -n argocd
NAME                    TYPE           CLUSTER-IP      EXTERNAL-IP      PORT(S)                      AGE
argo-cd-argocd-server   LoadBalancer   10.43.146.178   172.16.111.245   80:31903/TCP,443:31208/TCP   7m8s
armand@beelink:~$

Ingress

Follow the ingress documentation on how to configure Argo CD with ingress.

I will expose Argo CD using Ingress once I have installed Ingress Controller.

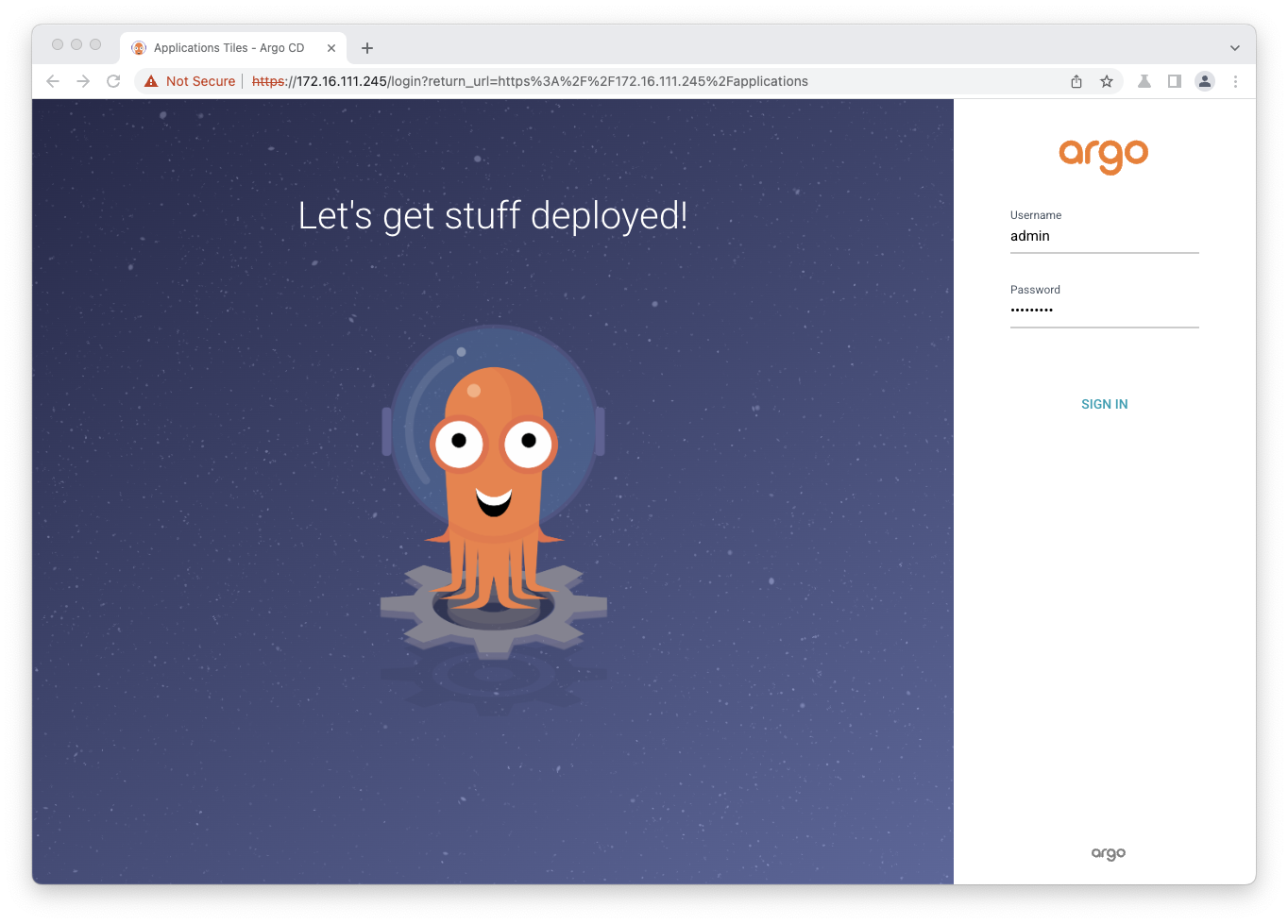

Log in to the UI for the first time

Initial password

The initial password for the ‘admin’ account is automatically generated and stored in plain text in the ‘password’ field of a secret called ‘argocd-initial-admin-secret’ in your Argo CD installation namespace.

You can retrieve this password using kubectl get secret or using the argocd CLI:

Using kubectl:

# Get admin password
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

Using the argocd CLI:

argocd admin initial-password -n argocd

It is recommended you update the password using argocd account update-password.

First login to Argo using initial password

# Using the username `admin` and the password from above, login to Argo CD's IP or hostname:

argocd login <ARGOCD_SERVER>

# Example
argocd login 172.16.111.245
WARNING: server certificate had error: tls: failed to verify certificate: x509: cannot validate certificate for 172.16.111.245 because it doesn't contain any IP SANs. Proceed insecurely (y/n)? y
Username: admin
Password:
'admin:login' logged in successfully
Context '172.16.111.245' updated

Then, Change the password using the command:

argocd account update-password

# Example
 argocd account update-password
*** Enter password of currently logged in user (admin):
*** Enter new password for user admin:
*** Confirm new password for user admin:
Password updated
Context '172.16.111.245' updated

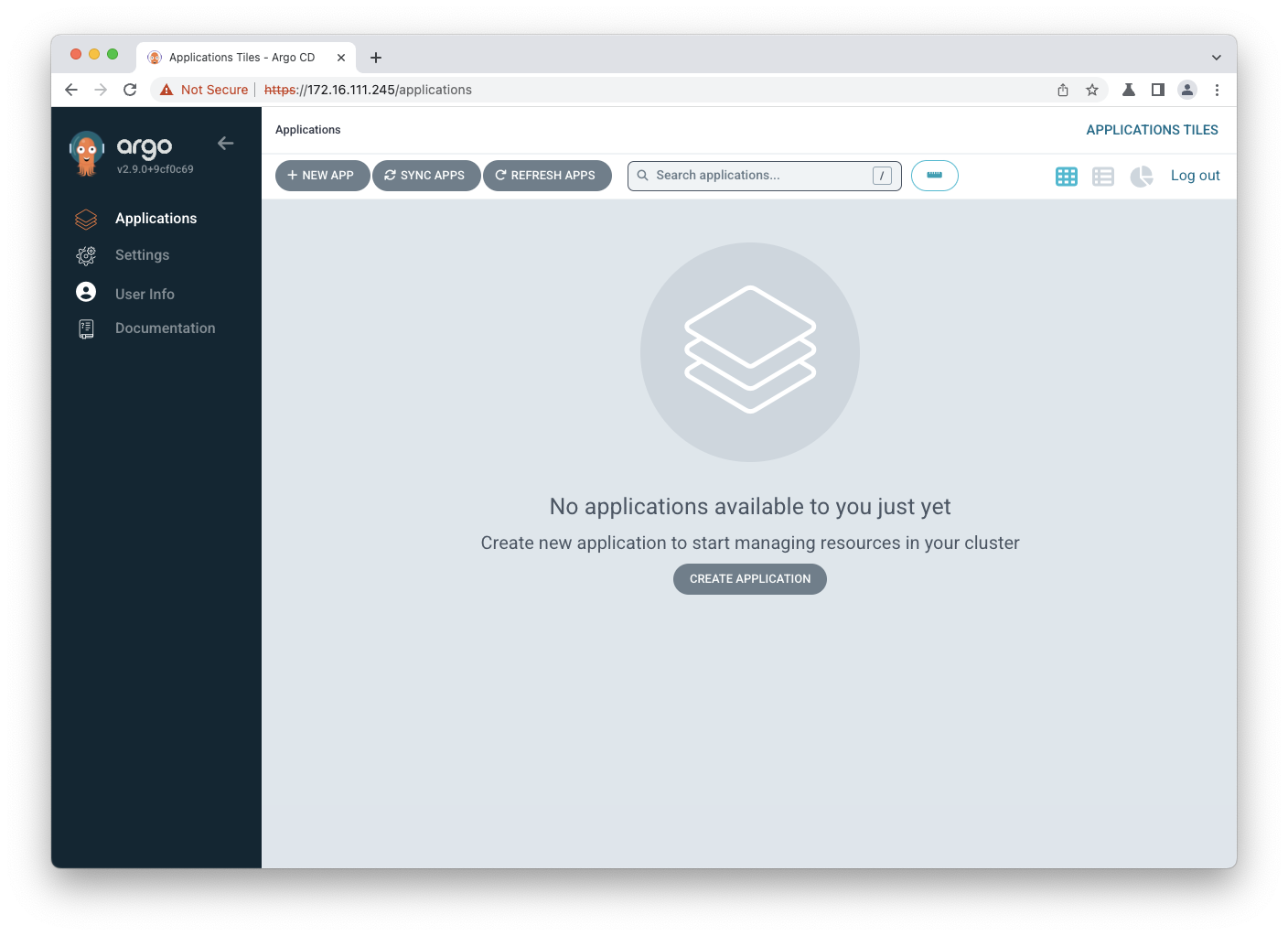

Access Web UI

You can now access the the Argo’s webUI using admin and the updated password you provided on the IP Address of your exposed service (in my case the loadBalancer IP)

argo-first-time-login argo-first-time-logged-in

Register an external cluster to deploy applications to (Optional)

Internal Cluster where ArgoCD is deployed

When managing an internal cluster where ArgoCD is deployed, registering a cluster’s credentials with Argo CD is unnecessary. For deployments within the same cluster, Argo CD operates in, the Kubernetes API server address for applications should be set to https://kubernetes.default.svc. This simplifies the process as it leverages the cluster’s internal configuration.

External Cluster where ArgoCD is not deployed

To configure access and management of an external cluster you can see the instructions here

Practice Create An Application From A Git Repository

Follow the steps in the official Getting Started Guide to Create An Application From A Git Repository and another great article is Configuring private Git repo in Argo CD to deploy Kubernetes apps
