If you want to run Docker Containers in Proxmox, you have two choices: an LXC container or a virtual machine. The primary contrast between both methods lies in the resources that the Proxmox host consumes. The resources must be decided upon in advance when creating a virtual machine (VM). That said, if you specify that your VM should use 4GB of memory, it will require an entire 4GB when activated. LXC containers are distinct as the allocated memory is more like a cap instead. For this reason, LXC containers drastically reduce system resources compared to VMs. Although numerous other distinctions exist between LXC containers and VMs, the reduction in system resource utilization is perhaps the most evident regularly.

For this guide, I’ll run through a setup I have in my homelab, which does not deal with much compute or traffic throughput workloads at all

Setup

Some example lightweight services I use in my home lab infrastructure are

• CoreDNS for DNS
• Maildev - simple test smtp
• syslog-ng for logging

lightweight System Requirements:

• Deployed on Proxmox
• Debian 11 LXC Container
• 512MiB or 1024MiB Memory
• 1 Core CPU
• 8GB Disk Space

Setup Docker host

Enable nesting

Older versions of Proxmox

1. In older versions of Proxmox, you need to enable nesting features in the Proxmox VE Container Configuration so Docker can run. Newer vesions of proxmox has exposed this option as a tick box in the Web GUI

For older versions of Proxmox, the /etc/pve/lxc/<CTID>.conf files stores container configuration, where CTID is the numeric ID of the given container.

  # On the proxmox server
  # e.g., where my LXC ID is 101
  nano /etc/pve/lxc/101.conf

insert at the bottom of the file:

  features: keyctl=1,nesting=1

1. Reboot the container

Newer versions of Proxmox

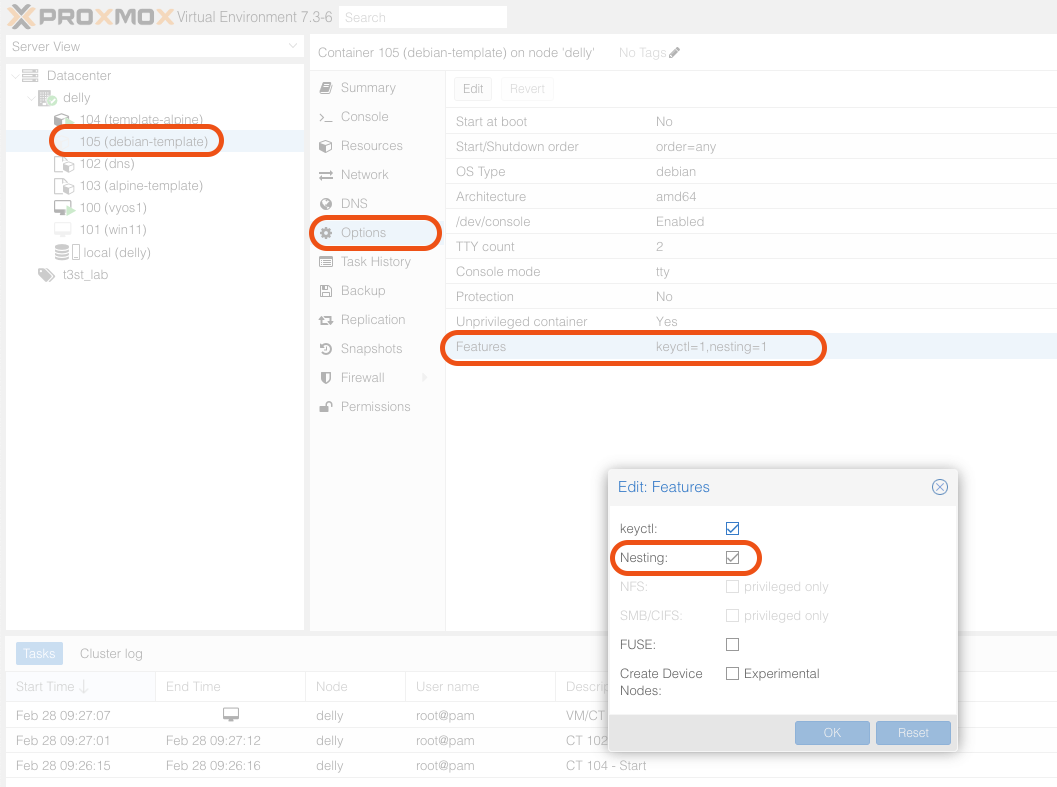

For Newer versions of Proxmox, You can enable this option in the GUIYou can enable this option in the GUI

Install Docker and other tools

1. Optionally, Install any prerequisite or useful tools on the Docker host

  # Run as root
  apt apt update && apt upgrade -y
  apt install -y dnsutils net-tools sudo jq git

1. See Install Docker Engine for official Install guide. For example, I can run the following for my Debian based system

  # Run as root
  apt-get update
  sudo apt-get remove docker docker-engine docker.io containerd runc

  sudo apt-get -y install \
      apt-transport-https \
      ca-certificates \
      curl \
      gnupg \
      lsb-release

  curl -fsSL https://download.docker.com/linux/debian/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg

  echo \
    "deb [arch=amd64 signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://download.docker.com/linux/debian \
    $(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

  sudo apt-get update
  sudo apt-get install -y docker-ce docker-ce-cli containerd.io docker-compose

1. Create the docker group and add your user to the docker group.

  sudo groupadd docker
  sudo usermod -aG docker $USER

1. Confirm you can run a docker container:

  docker run hello-world

1. To allow us to start containers on reboot, ensure docker.service enabled on system startup

  # Start Docker containers on host start/reboot
  $ sudo systemctl enable docker

Clone repo and start services!

If you keep your Docker container Infrastructure-as-Code then you can pull it from your repo and run

1. Create designated directory for the repo and git clone the repo locally

  export GITHUB_USER=armsultan
  export GITHUB_TOKEN=[secret]
  export GITHUB_REPOSITORY=armsultan/t3st-core-services
git clone https://${GITHUB_USER}:${GITHUB_TOKEN}@github.com/${GITHUB_REPOSITORY} ~/services

1. Start the Docker Containers for the first time:

  cd ~/services
  docker-compose up -d

1. Run docker ps and check there are no errors:

  CONTAINER ID   IMAGE                   COMMAND                  CREATED          STATUS                    PORTS                                                                                                                     NAMES
  5e4a6043a23c   maildev/maildev:2.0.5   "bin/maildev"            55 seconds ago   Up 54 seconds (healthy)   0.0.0.0:25->1025/tcp, :::25->1025/tcp, 0.0.0.0:80->1080/tcp, :::80->1080/tcp                                              maildev
  e5564323dd3d   services_syslog-ng      "tini -- /bin/sh -c …"   55 seconds ago   Up 54 seconds             0.0.0.0:601->601/tcp, :::601->601/tcp, 0.0.0.0:514->514/udp, :::514->514/udp, 0.0.0.0:6514->6514/tcp, :::6514->6514/tcp   syslog-ng
  48bc51ee1d3d   services_coredns        "/coredns -conf /etc…"   55 seconds ago   Up 54 seconds             0.0.0.0:53->53/tcp, 0.0.0.0:53->53/udp, :::53->53/tcp, :::53->53/udp

Other Tips

• *Optional: Disable Postfix on the Docker Host Since we will use port 25

   # Kill process on port 25
   kill -9 $(lsof -t -i:25 -sTCP:LISTEN)

   # Disable postfix
   sudo update-rc.d postfix disable


• For your containers to start on boot, make sure your services in your docker-compose.yml has one the following options

   # It will always restart the container, no matter whatever be the exit code is.
   restart: always
   # Will keep an instance running unless the container is stopped
   restart: unless-stopped
   # will issue a restart if the exit code indicated a failure
   restart: on-failure


  This will run when you reboot your system if you run below command only once

   docker-compose up -d


• Limit logs to prevent logs filling your system

        logging:
            driver: "json-file"
            options:
                max-file: "5"
                max-size: "10m"
